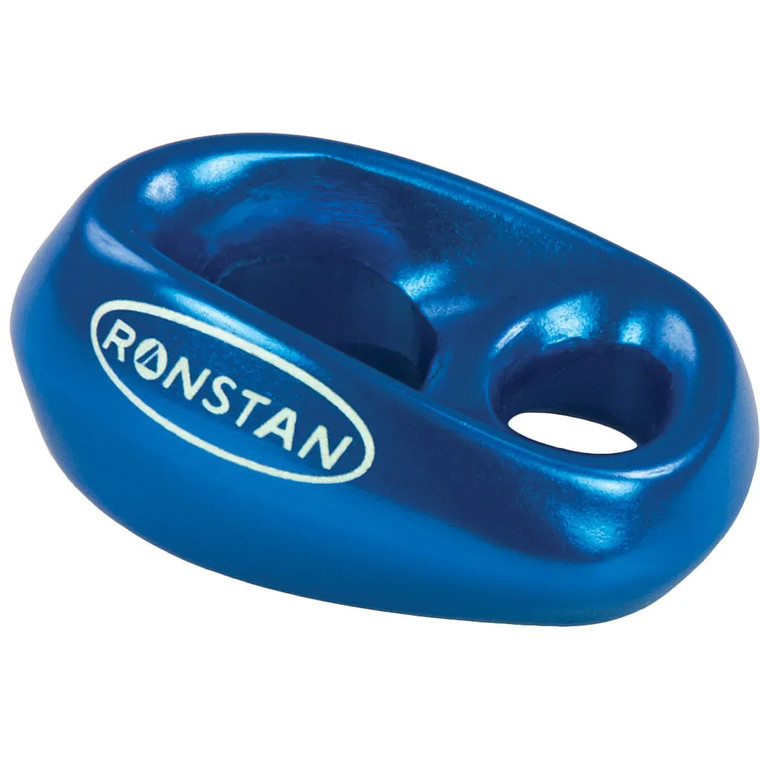

Ronstan Large SHOCK™, (10-pack Blue or Red) RF8081

The Ronstan Large SHOCK™ RF8081 is an ultra-lightweight, high-strength sheaveless load deflection and purchase solution designed for modern high-performance sailing. Supplied in a 10-pack, these compact anodised aluminium units are ideal for low-friction line routing, control systems, and soft-attachment rigging where minimal weight and maximum strength are essential.

The Ronstan Large SHOCK™ RF8081 is a highly versatile, ultra-compact load deflection device designed for performance sailing systems where simplicity, strength, and weight reduction are critical. Engineered as a sheaveless alternative to traditional blocks, SHOCK™ units provide efficient line guidance and load distribution in a minimal footprint.

Manufactured from high-strength anodised aluminium, each unit weighs only 12 grams yet delivers an exceptional breaking load capacity of up to 1000kg, depending on the strength of the attachment system used. This outstanding strength-to-weight ratio makes the SHOCK™ ideal for demanding dinghy, skiff, and small sailboat applications where performance optimisation is essential.

The design is highly tolerant of off-axis loading, allowing the line to run smoothly even when alignment is not perfectly straight. This makes it particularly effective in dynamic rigging environments where angles constantly change during manoeuvres.

The RF8081 Large SHOCK™ is compatible with 3–10mm line and can also be used with up to 10mm webbing attachments, providing excellent versatility across a wide range of rigging configurations. Its soft-attachment design allows integration into modern lightweight systems using Dyneema® loops, lashings, or webbing strops.

Common applications include vangs, tweakers, barber haulers, lazy jacks, Cunningham systems, kite bridles, leech lines, trapeze elastic systems, and various control line setups. It is also suitable for larger yacht utility applications such as sail covers, tie-down systems, ladders, and hoisting systems.

Colour-coded for easy identification and organisation in complex rigging setups, the SHOCK™ system helps simplify modern high-performance sail control layouts while reducing weight aloft and improving efficiency.

Key Features

• Ultra-lightweight sheaveless load deflection system
• Supplied in 10-pack for rigging efficiency
• High-strength anodised aluminium construction
• Exceptional strength-to-weight ratio
• Up to 1000kg breaking load (attachment dependent)
• Soft-attachment compatible design
• Works effectively under off-axis loading
• Compact, low-profile rigging solution
• Accepts 3–10mm rope and up to 10mm webbing
• Colour-coded for rigging organisation
• Ideal for high-performance sailing systems

Ideal For

• Dinghy sailing
• Skiff racing
• Sportboats
• Foiling classes
• Vang systems
• Tweakers and barber haulers
• Cunningham systems
• Lazy jacks
• Kite bridles
• Trapeze elastic systems
• Control line deflection
• Lightweight yacht utility systems

Technical Specifications

• Model: RF8081
• Product Type: Large SHOCK™ Load Deflection Ring
• Material: Anodised Aluminium
• Weight: 12g (each)
• Breaking Load (BL): 1000kg (attachment dependent)
• Maximum Working Load (MWL): 500kg (attachment dependent)
• Rope Diameter: 3–10mm
• Dimensions: 14.5mm (H) x 36mm (L) x 24.8mm (W)
• Configuration: Low Friction / Sheaveless Design
• Pack Size: 10 units
