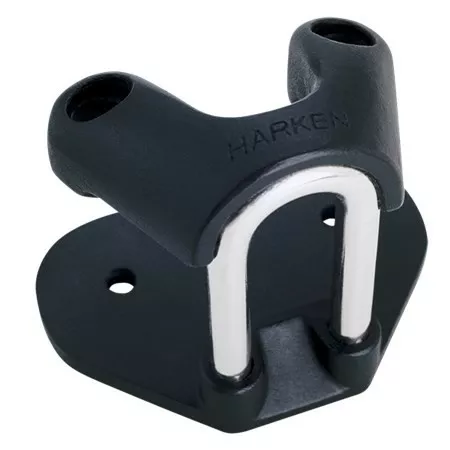

Harken Micro X-Treme Angle Fairlead 476

Harken Micro X-Treme Angle Fairlead – 476

The Harken Micro X-Treme Angle Fairlead 476 is designed to maximise the performance of Harken cam cleats by allowing lines to be released and re-cleated at angles of up to 90°. Compatible with Harken 468 and 471 cam cleats, it provides superior line control in dynamic sailing situations where traditional fairleads can struggle.

The Harken Micro X-Treme Angle Fairlead 476 is a specialist fairlead designed to enhance the functionality and versatility of Harken cam cleat systems. Unlike conventional fairleads that require lines to remain close to the centreline of the cleat, the X-Treme Angle Fairlead allows sailors to release and re-cleat lines from angles up to 90 degrees from the cleat.

This innovative design is particularly valuable in modern performance sailing applications where crew movement, hiking positions, trapezing, and dynamic trimming angles often make direct line alignment difficult. Traditional fairleads can allow lines to uncleat at extreme angles and may prevent quick re-cleating without first repositioning the line. The Harken X-Treme Angle Fairlead solves this problem by maintaining reliable line guidance even during aggressive manoeuvres and off-angle trimming.

Constructed from durable marine-grade materials, the fairlead integrates seamlessly with compatible Harken Micro Cam-Matic® cleats, providing a lightweight and highly effective upgrade to existing control systems. The design improves trimming efficiency, enhances crew ergonomics, and allows faster, more confident sail adjustments in racing and high-performance sailing environments.

Compatible with Harken 468 and 471 cam cleats, the 476 is commonly used on dinghies, skiffs, sportsboats, foiling classes, and performance keelboats where precise line control and rapid adjustment are essential.

Key Features

• Allows line release and re-cleating at angles up to 90°
• Maintains control during off-angle trimming
• Improves cam cleat accessibility and usability
• Eliminates the need to centre lines before re-cleating
• Ideal for dynamic sailing positions and manoeuvres
• Lightweight and durable construction
• Improves trimming efficiency and crew ergonomics
• Designed for high-performance sailing applications
• Easy integration with compatible Harken cam cleats
• Suitable for racing and recreational sailing

Ideal For

• Dinghy sailing
• Skiff racing
• Foiling classes
• Sportsboats
• Keelboat racing
• Cunningham controls
• Outhaul systems
• Traveller controls
• Vang adjustments
• Frequently adjusted control lines

Technical Specifications

• Model: 476
• Product Type: X-Treme Angle Fairlead
• Height Above Cam: 22mm
• Overall Height: 37mm
• Length: 33mm
• Width: 51mm
• Weight: 29g
• Fastener Spacing: 27mm
• Compatible Cam Cleats: Harken 468 and 471
