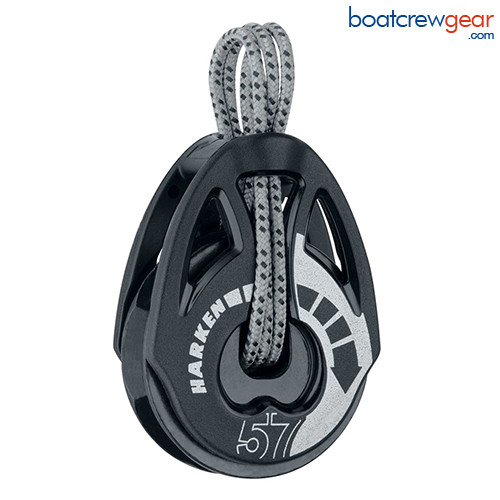

Harken 57 mm T2 Soft-Attach Ratchamatic® Block 2160

Harken 57mm T2™ Soft-Attach Ratchamatic® Block – 2160

The Harken 57mm T2™ Ratchamatic® Block 2160 combines Harken’s load-sensing Ratchamatic® technology with the lightweight T2™ soft-attach design. It automatically switches between free-running and ratchet modes under load, delivering smooth, efficient trimming and powerful holding performance for mainsheet and spinnaker systems on high-performance sailing craft.

The Harken 57mm T2™ Soft-Attach Ratchamatic® Block 2160 represents one of Harken’s most advanced lightweight control blocks, combining the versatility of the T2™ soft-attach system with the intelligent load-sensing performance of Ratchamatic® technology.

Built with composite fiber-reinforced sideplates and a hardcoat-anodized aluminium sheave, this block achieves an exceptionally low weight while maintaining high strength and durability. The simplified internal mechanism reduces moving parts, improving reliability while keeping weight to just 71 grams.

The T2™ soft-attach system allows the block to be lashed or spliced directly through the load-bearing centre, reducing stress on the sideplates and providing a built-in safety backup. This attachment method also enables precise positioning, allowing sailors to set optimal block height for clean lead angles and efficient trimming.

The Ratchamatic® mechanism automatically engages under load and releases when loads decrease, delivering seamless transition between free-running and ratchet modes. This ensures smooth sheet handling during light-air manoeuvres while providing increased holding power when loads rise. The system is particularly effective for dynamic sail control where conditions change rapidly, such as mark roundings, gybes, and spinnaker handling.

With 10:1 holding power, the 2160 is ideal for mainsheet and spinnaker systems on dinghies, beach cats, skiffs, and sportboats. Unloaded lines run freely, while loaded sheets are held securely, reducing crew fatigue and improving trimming efficiency.

The included Spectra® soft-attach line allows immediate installation and flexible rigging configurations, while directional markings ensure correct orientation for optimal performance.

Key Features

• T2™ soft-attach lightweight design
• Ratchamatic® load-sensing ratchet system
• Automatic transition between free-running and ratchet modes
• Ultra-light composite fiber-reinforced construction
• Hardcoat-anodized aluminium sheave
• Soft-attach lashing or splicing system
• Loads carried through block core for added safety
• Adjustable positioning for optimal lead angles
• 10:1 holding power under load
• Includes Spectra® soft-attach line
• Directional markings for correct installation
• High strength with minimal moving parts

Ideal For

• Dinghy sailing
• Beach catamarans
• Skiff racing
• Sportboats
• Mainsheet systems
• Spinnaker sheet systems
• Asymmetric spinnaker control
• High-performance racing yachts
• Dynamic sail trimming systems

Technical Specifications

• Model: 2160
• Block Type: T2™ Soft-Attach Ratchamatic® Block
• Sheave Diameter: 57mm
• Length: 79mm
• Weight: 71g
• Maximum Line Diameter: 10mm
• Maximum Working Load: 227kg
• Breaking Load: 907kg
• Holding Power: 10:1 (at 180° wrap)
• Sheave Material: Hardcoat-anodized aluminium
• Sideplates: Composite fiber-reinforced
