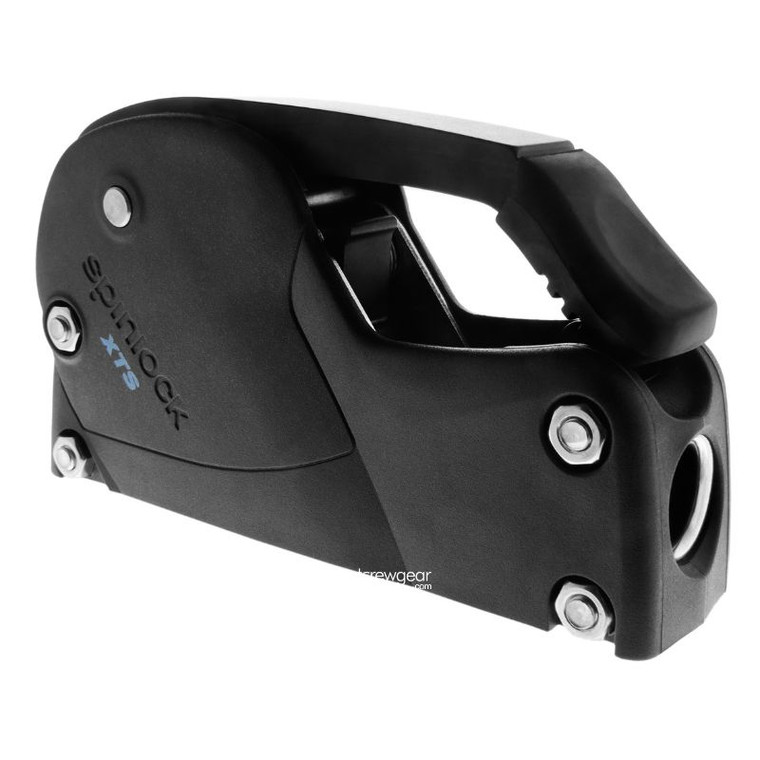

Spinlock XTS Single Rope Clutch 8mm - 14mm
Spinlock
AUD $249.95
AUD $281.80
(You save
AUD $31.85
)
The Spinlock XTS Single Rope Clutch is a compact, high performance line control solution designed for yachts requiring reliable holding power for a single critical control line. Engineered to manage ropes from 8mm to 14mm, it is ideal for halyards, reefing lines and control lines where secure locking and smooth adjustment are essential.
Utilising Spinlock’s proven cam technology, the XTS clutch delivers strong, consistent holding power while minimising rope wear. Smooth engagement and controlled release allow lines to be locked off securely under load and adjusted precisely when trimming sails. Its compact footprint makes it particularly well suited to performance focused deck layouts and space conscious installations.
Designed for use with modern high load rope constructions, the Spinlock XTS Single Rope Clutch offers excellent durability and long term reliability in demanding marine environments. Suitable for cruising, racing and performance sailing applications, it provides dependable line management backed by trusted Spinlock engineering.
© Boat Crew Gear
- Mid to higher load rope holding
- Reliable all around performance
- Extruded alloy handle with soft end grip
- Secure handle locking in open and closed position
- Easy access to fasteners
- Handle labels supplied
- Side fairing accessory for side mounting on either side
- Ceramic Coated CAM and Base available for consistent holding & performance with modern performance lines
- Choose XTS0610 for best performance on smaller diameter lines
-
Choose XTS0814 for best performance across the rope range
XTS0610
Lines: 6mm - 10mm (1/4" - 3/8")
Loads up to 1000kg (2200lbs)
Loads up to 1000kg (2200lbs)
XTS0814
Lines: 8mm - 14mm (5/16" - 9/16")
Loads up to 1000kg (2200lbs)
Loads up to 1000kg (2200lbs)
XTS0610 - Small diameter, high load
For 6-10mm lines and optimised for 8-10mm lines. Strongly recommended for high strength small diameter line. To upgrade from XTS0814, fit CAM-0610
Side Mounting
Side mounting is usually the neatest solution for spars, side decks and coamings
Endless Line XTS/M
Solves the problem of loading a continuous furling line
These clutches are supplied as kits with open bullseyes to be assembled directly onto the line
Lock Open Cam XTS/L
Cam fitted with special lock open feature. When lock is engaged, the line is able to fun freely in both directions, with the handle closed, until normal clutch function is needed
